Solving High-Dimensional Multiobjective Optimization Problems

Solving high-dimensional blackbox optimization problems is very hard. Solving them in the multiobjective sense is even harder. Doing this efficiently on a limited budget could be considered a grand challenge type problem.

To quote our FAQ:

  • The key issue is that global optimization is expensive. At a fundamental level, no blackbox solver can guarantee global convergence without densely sampling the design space, which is exponentially expensive when n (number of design variables) is large. So what can you do? You can switch to using local modeling methods, whose costs generally only grow linearly in the dimension. You will not get any global convergence guarantees, but in many cases, you will still be able to approximately solve your problem.

  • If you have a lot of design variables, then you might do better with a local solver, by switching your optimization solver to a local variant. E.g., if you are using the LBFGSB optimizer, then you will also need to switch to the TR_LBFGSB optimizer.

  • The majority of ParMOO’s overhead comes from fitting the surrogate models and solving the scalarized surrogate problems. If you followed the quickstart, then the default method for surrogate modeling was to fit a Gaussian process. For numerical stability reasons, we fit our Gaussian processes via a symmetric-eigensolve, which is not cheap. Then you may have to evaluate the Gaussian process thousands of times while solving the surrogate problem. All of this expense adds up, especially if you are using a large total budget, since the cost of fitting Gaussian processes grows cubically with the number of data points. One solution is to switch to using a local solver (see above) so that the GaussRBF surrogate does not use the entire database when fitting surrogates, and therefore is more scalable for handling large budgets.

We will attempt to solve a convex 50-design variable, 2-objective problem on a budget of just 250 simulation evaluations. Going off a modification to the quickstart, this will produce the following script. We also have a similar example in the solver_farm.


import numpy as np
import pandas as pd
from parmoo import MOOP
from parmoo.searches import LatinHypercube
from parmoo.surrogates import GaussRBF
from parmoo.acquisitions import RandomConstraint, FixedWeights
from parmoo.optimizers import LocalSurrogate_BFGS
from parmoo.objectives import SingleSimObjective, SingleSimGradient
import logging

# Switch to using the LocalSurrogate_BFGS solver to solve surrogate problems
# in a trust region with multistart LBFGSB
my_moop = MOOP(LocalSurrogate_BFGS, hyperparams={'np_random_gen': 0})

# Massive 50-variable black-box optimization problem
# Completely hopeless for methods that rely on global models
for i in range(1, 51):
    my_moop.addDesign({'name': f"x{i}",
                       'des_type': "continuous",
                       'lb': 0.0, 'ub': 1.0})

# A simple convex simulation output with 2 outputs
def sim_func(x):
    xx = np.zeros(50)
    for i in range(50):
        xx[i] = x[f"x{i+1}"]
    # 25 variables that don't affect tradeoff, but need to be minimized
    tail = np.linalg.norm(xx[25:] - 0.5) ** 2 / 25
    # 25 variables that do affect tradeoff
    s1 = np.linalg.norm(xx[:25] - 0.2) ** 2 / 25 + tail
    s2 = np.linalg.norm(xx[:25] - 0.8) ** 2 / 25 + tail
    return np.array([s1, s2])

# Using a local surrogate to dodge the curse of dimensionality
# Notice that search_budget has to be greater than the number of variables
my_moop.addSimulation({'name': "MySim",
                       'm': 2,
                       'sim_func': sim_func,
                       'search': LatinHypercube,
                       'surrogate': GaussRBF,
                       'hyperparams': {'search_budget': 200}})

# 2 objectives (using the SingleSimObjective library objective to minimize a
# single output of the simulation function)
my_moop.addObjective({'name': "f1",
                      'obj_func':
                      SingleSimObjective(my_moop.getDesignType(),
                                         my_moop.getSimulationType(),
                                         ("MySim", 0)),
                      'obj_grad':
                      SingleSimGradient(my_moop.getDesignType(),
                                        my_moop.getSimulationType(),
                                        ("MySim", 0))})
my_moop.addObjective({'name': "f2",
                      'obj_func':
                      SingleSimObjective(my_moop.getDesignType(),
                                         my_moop.getSimulationType(),
                                         ("MySim", 1)),
                      'obj_grad':
                      SingleSimGradient(my_moop.getDesignType(),
                                        my_moop.getSimulationType(),
                                        ("MySim", 1))})

# When solving big problems, it's often better to fix some acquisitions so
# we can focus on a few high-quality solutions
my_moop.addAcquisition({'acquisition': FixedWeights,
                        'hyperparams': {'weights': np.eye(2)[0]}})
my_moop.addAcquisition({'acquisition': FixedWeights,
                        'hyperparams': {'weights': np.eye(2)[1]}})
my_moop.addAcquisition({'acquisition': FixedWeights,
                        'hyperparams': {'weights': np.ones(2) / 2}})
# Keep one randomized acquisition to get some coverage of the Pareto front
my_moop.addAcquisition({'acquisition': RandomConstraint,
                        'hyperparams': {}})

# Turn on logging with timestamps
logging.basicConfig(level=logging.INFO,
                    format='%(asctime)s %(levelname)-8s %(message)s',
                    datefmt='%Y-%m-%d %H:%M:%S')

# 50 iterations * 4 acquisition funcs + 50 point search = 250 eval budget
# This could take a few minutes to run...
my_moop.solve(50)

# Display the values of x26, ..., x50 for all solution points
results = my_moop.getPF(format="pandas")
results[[f"x{i}" for i in range(26, 51)]].to_csv("local_method.csv")

# Plot results -- must have extra viz dependencies installed
from parmoo.viz import scatter
# The optional arg `output` exports directly to jpeg instead of interactive mode
scatter(my_moop, output="jpeg")

The above code is able to approximately solve the problem on an extremely limited budget given the large dimension, and it produces the following figure of the nondominated points:

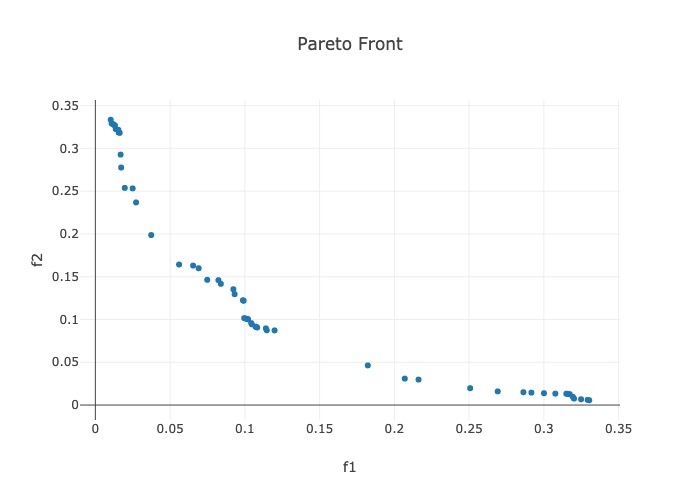

Scatter plot of solution points found for a high-dimensional problem

The solution is inexact, but the general shape of the Pareto front is already visible. Running for more iterations would further increase the accuracy.

Based on the problem definition in the code block above, a necessary but not sufficient condition for Pareto optimality would be x26=0.5, x27=0.5, … x50=0.5. To guess at our performance, the above method prints a csv file, selecting just columns x26, … x50 from the final dataframe:

,x26,x27,x28,x29,x30,x31,x32,x33,x34,x35,x36,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50
0,0.5406141890119655,0.5310559548511985,0.4782778661788712,0.5066378405096029,0.5619652821477996,0.5258790618356327,0.5448748978968784,0.5027359168128959,0.5469476700685397,0.5448488935222029,0.4939952833274098,0.5134604875558091,0.5336857738878866,0.43705562240562484,0.5591346263189252,0.5716814256635628,0.5087567295496408,0.5532216552763748,0.5442856578637669,0.519447415865652,0.4295642742105511,0.53748959249549,0.4951954559824862,0.4567653665394147,0.4906396663297374
1,0.5452520500315474,0.5378013884065455,0.45834522020203955,0.5286836215897419,0.58460248538763,0.5007196073165463,0.5287950956139995,0.5255458708546152,0.5424745591438922,0.5481666945113648,0.5004244640975176,0.5260187440321982,0.5297820188124565,0.41703391437370557,0.5517215804343278,0.5770103778713175,0.5299936555897005,0.5625523747155632,0.5253475674104143,0.5034220110459986,0.4139405199942552,0.5156934838070351,0.5057082499044356,0.45481381204633514,0.49174304635686117
2,0.5443283039904434,0.5286814232968683,0.45410711968654605,0.5388371283989212,0.5902159876212801,0.5175650533580255,0.5537950956139995,0.5140896992096141,0.5491765768870949,0.5553153363103811,0.5212796695074357,0.5374694022038041,0.5495106320376701,0.4042273822625628,0.5451487062236438,0.6020103778713175,0.5195410225873772,0.5532779396723859,0.5200060203508603,0.4855439792230121,0.43538687444219015,0.5100804201103465,0.5012174189274267,0.4427863402873476,0.49540537831513176
3,0.525372737776971,0.5260873656807655,0.455749499663617,0.5335023932071642,0.5831862757980874,0.5156373455175879,0.5541378303253316,0.5161882028340374,0.5554204215018756,0.5443254411223084,0.5274962953851561,0.5369828882068867,0.5491109981055682,0.40238716761970456,0.5414251950410625,0.6166274654670744,0.5095305851541715,0.5600881727141958,0.5177470495796888,0.4804681604943066,0.43743428413118157,0.501544793459115,0.4844427016030733,0.4529857525618075,0.47968501358157206
4,0.5265194865564098,0.545462560606136,0.4288011774113938,0.5290558436123651,0.6124028786511763,0.542454637969231,0.5381150538821693,0.4958570675682806,0.5391668899194553,0.5588766155163882,0.5181760358408609,0.5426662562529917,0.5843305231669138,0.38574262167877177,0.5902438963136853,0.634831998723366,0.5408175465317983,0.5203282560353724,0.5399472100403963,0.4931652733216198,0.40649869287610363,0.5136808541466656,0.4769112205626675,0.4952890633591384,0.4644310360548569
5,0.5548664969316457,0.5873631008545305,0.4167305447048623,0.5315005603943704,0.6528488398162686,0.5601969941539163,0.5054734346399418,0.4656526302705372,0.5611706586895875,0.5819514248029906,0.5380958823467006,0.5861929971097632,0.5636170741577405,0.3558150650268759,0.6044164936792823,0.6101104324578818,0.5533326367413178,0.5357860910660774,0.5082297091080228,0.5051886985397409,0.3872168823138374,0.5207686535504717,0.4339198929376968,0.4890297346224251,0.4723337551931438
6,0.5451209913953392,0.5941170029233357,0.42889007317486727,0.5257298146199271,0.65666248465871,0.5578594511898975,0.5105622695719876,0.46109706653120436,0.5597046803353067,0.5886937961673141,0.5270168830292234,0.5904180648392992,0.5636544931040204,0.35325249071806836,0.610444013334552,0.6099402782531259,0.5513081960405987,0.5352982548489182,0.49917777915786393,0.5022307480886327,0.3807642711670351,0.5289188241032363,0.43614939925599744,0.4792461137929681,0.4850322190980407
7,0.5354005368113836,0.598801399627338,0.41513487183469444,0.5379787651245146,0.6756864770979019,0.5662091719708513,0.49748981580027674,0.46473068799325146,0.5834057695996581,0.584218422314465,0.5272508513960592,0.5861867568167216,0.5556592822821809,0.361653795191811,0.6290974903741027,0.6077889538351948,0.5500898948495624,0.5138564185847302,0.5213912607769802,0.4891203468529222,0.42012615022262806,0.5143026040911398,0.4339285264758721,0.4899882033220406,0.4762890261729699
8,0.5493575896063656,0.591687892310538,0.42055267115337147,0.5297878267157979,0.6484450733750119,0.556079563332824,0.5103854648581864,0.47353819976393013,0.5595442160778672,0.5817887359186638,0.5359708509747059,0.5860245267951419,0.5668622618797949,0.3634482072380602,0.6172253148921593,0.608853186771799,0.5641011737340716,0.5405339010368694,0.5017730382664486,0.49323731262471254,0.38356289581317576,0.5079264764590037,0.4257144695826395,0.472614268423427,0.4872287555610607
9,0.5333238354703456,0.6012132547780735,0.44508328465686364,0.5195052483630356,0.6471492458957081,0.5523360122136287,0.5180806364585995,0.48726593538853663,0.5765503311711195,0.5894691301368988,0.5259697023757608,0.6000166219141907,0.5688090111253906,0.3687514883700621,0.6332491128173048,0.5967166552392638,0.5528451909402866,0.5190323711777612,0.4955425030784182,0.47551621162682817,0.39216711470331206,0.5199048830450094,0.43236888253305417,0.44098370954390903,0.5043648797564627
10,0.5555920531936873,0.560494953552528,0.44024768412638915,0.507251289400126,0.632741171859117,0.5373689738341336,0.5280498461392692,0.4959332433668172,0.5956850302493755,0.5567899449629383,0.5628676511307704,0.5630967671823454,0.5345814387520406,0.38842898732084724,0.630208236555298,0.5801771038695596,0.5644102682642431,0.5507880010269339,0.492218463766406,0.4741011688153443,0.4149582017023372,0.5015944918620787,0.41589441945596833,0.4538668355059693,0.4938141206732654
11,0.5450712591413592,0.5817233501016291,0.4539330837234465,0.510673658057177,0.645016063000869,0.5315708789458682,0.5331573577565115,0.4881847297409871,0.5704748780701934,0.5783553013943539,0.5365554420875238,0.5703150462746478,0.5376992730712359,0.34752019558988023,0.617679123457548,0.5882294198323634,0.534610950015848,0.5719353389819583,0.4914787342389932,0.5001168075732514,0.3926422294163913,0.517502789400708,0.44021109142865267,0.469072434797833,0.49594664552145296
12,0.4964709486914671,0.5276418921991508,0.4659675982556384,0.5841488883271526,0.6096747839492609,0.5158560081161482,0.5543666168009065,0.5193654535778891,0.519774211006298,0.5298258325003108,0.48675512896618484,0.5353306064782899,0.5162588623903518,0.4155442843275203,0.5527018488899438,0.655642425161566,0.49351401180911597,0.4822313283474517,0.5576542320274283,0.45045643999987445,0.4406253325342931,0.4752647846078923,0.49380204387505006,0.43147691649066855,0.4165191331666142
13,0.4833238354703456,0.5512132547780735,0.49508328465686363,0.4695052483630356,0.5971492458957081,0.6023360122136288,0.5680806364585995,0.43726593538853664,0.5265503311711195,0.5394691301368988,0.4759697023757608,0.5500166219141907,0.6188090111253907,0.4187514883700621,0.5832491128173047,0.5467166552392637,0.5028451909402866,0.46903237117776125,0.5455425030784182,0.5255162116268282,0.44216711470331205,0.5699048830450094,0.3823688825330542,0.490983709543909,0.5543648797564628
14,0.4451209913953392,0.5207187586309772,0.5288900731748672,0.4573149856404139,0.55666248465871,0.45785945118989757,0.4887462158798233,0.5610970665312044,0.5603344870831415,0.4886937961673141,0.5741244791797653,0.4904180648392992,0.4636544931040204,0.4532524907180684,0.5413975160921313,0.5191773197049137,0.4513081960405987,0.6352982548489182,0.599177779157864,0.41100926177040426,0.48076427116703513,0.42891882410323634,0.3361493992559974,0.4631698585511148,0.5850322190980407
15,0.5358342790045875,0.5549379606935649,0.5533416920402268,0.4901724333520706,0.545016063000869,0.48013027333073854,0.5647590411187018,0.5359025362945378,0.527498825921972,0.5267492448318725,0.5228948780806604,0.49639343175816597,0.4393407664210966,0.44748599707389347,0.5569339594054263,0.5238074276737861,0.45651139069839475,0.5306284082338207,0.5914787342389932,0.43848450913187004,0.4070439943484999,0.465336492342125,0.3966914229849352,0.48968231519429034,0.545927725717179
16,0.5461541133912928,0.5845913376305872,0.5353544086777893,0.5209380990428025,0.5598432766308168,0.5239674105709817,0.5726228810509704,0.5642079545112295,0.41977421100629797,0.5917023098955569,0.5867551289661849,0.4353306064782899,0.4162588623903518,0.5155442843275203,0.5363603137285705,0.555642425161566,0.47276927886116676,0.5822313283474517,0.6576542320274282,0.35901307386365094,0.3458853796740821,0.42644678759196747,0.39380204387505,0.5314769164906685,0.5165191331666142
17,0.6164699952768907,0.5491080580012037,0.5391182154555755,0.5381154290098232,0.487228002119853,0.4914671308767705,0.6457739804871343,0.5756519379393396,0.5833683712138176,0.5762070434358472,0.4827418989182641,0.5286398007098603,0.5036170709394822,0.39123397115528347,0.5433088922403432,0.5066909041807417,0.516104139793118,0.49542874892024136,0.5361625275592978,0.37636188414122607,0.3946402168329262,0.5080578430249777,0.47728701435291004,0.4262547727471916,0.6261136699143276
18,0.5533049892479539,0.5695454242901581,0.5824251845283004,0.5234948926641017,0.4751468458340739,0.4801722058028502,0.5811199991954668,0.5564277525516157,0.5613304372499397,0.5718467619013705,0.5394806847876957,0.5050478573240863,0.45165369777051984,0.4507553661863296,0.5734993378116614,0.48638483503579816,0.4896743625465284,0.5169860881742061,0.5937446046063831,0.3695292818063326,0.3670970959202294,0.44103953748506336,0.41040739282829974,0.5066938638347165,0.5872038447538327
19,0.5971995293339282,0.537773401536313,0.5372290589059145,0.5234974308285615,0.5140204687892836,0.47712398293210195,0.6140275984551574,0.5759788892192267,0.5874028471461837,0.5490211826493592,0.5300916074592013,0.5303910780080741,0.480816354409656,0.39850999265686304,0.5908694609346081,0.48006407998237005,0.48705026518803846,0.5357700357411015,0.5529836847606862,0.3735258945565032,0.4003652997689761,0.4691255331106964,0.4500135938146682,0.4367726421572957,0.6132704947544189
20,0.5943891276022841,0.5561348274704403,0.5820176352123387,0.5211264430942422,0.46952021559961515,0.4719802938221043,0.5842065572107394,0.540746453490421,0.5672435508882894,0.5651560498883633,0.5221766289734322,0.5161819934220248,0.4553588910876144,0.4422860252086354,0.5711852905045333,0.4927865268694176,0.4928597926494146,0.5015259406116765,0.565494382857244,0.3898619072732319,0.374890323803612,0.44564119757516574,0.42360285740087544,0.49502551725698896,0.5761758885518754
21,0.5918651089147693,0.5573961129402855,0.5794802927178918,0.5243752080417796,0.47260023722358757,0.47157411839586566,0.5860434395965515,0.5413900544771505,0.562537096231197,0.572729070485037,0.5249126416382021,0.5142888690012691,0.4601004472864535,0.4396048368025535,0.5742617608326547,0.49123307125306515,0.49362118474963645,0.503512739196028,0.5642162722436999,0.3912121188923987,0.3725076097549241,0.4480133762256835,0.4224232300117561,0.4915314864621813,0.5784641851725572
22,0.5894536692823208,0.5572015076060248,0.5788732758179346,0.5293952646915989,0.47248376748206483,0.4732530077472044,0.586247386756802,0.5372381138645912,0.5599095642796147,0.5747916585907747,0.5286762187582241,0.5128841198735545,0.46278322492785745,0.4370880554779581,0.5727502147913681,0.49041670353211475,0.4980796853062639,0.5008065058959245,0.5650301964201492,0.39478666885480107,0.3675182542713157,0.44979261486254435,0.4203743715587322,0.4905991067241518,0.582945191155998
23,0.5992514996665631,0.550821119627275,0.584951706946471,0.5326931711066918,0.47495407406757056,0.46633525778400364,0.5918473829901668,0.5412979250031301,0.5639294635349446,0.5670085308857445,0.5214325570680624,0.5116609405317721,0.46375462105180193,0.4414170313668201,0.5859390178223307,0.486793090113621,0.49665654015301464,0.4928378719231779,0.5488473594204133,0.3932148398177012,0.38033194610865023,0.4372191394430378,0.42736406158433093,0.48609164792155235,0.5791679775464799
24,0.5740648481001009,0.5548681860190362,0.5626438769480382,0.5301875499047354,0.47787006700393225,0.4684692794130465,0.5993306206273966,0.5704603006006224,0.5607993596391149,0.5762894053869789,0.526984163309109,0.4996890528477402,0.46911699162532977,0.44797915967288315,0.5920840653280603,0.48511294867550303,0.4942739285587689,0.5138839478450292,0.5581444788252073,0.3891646900447099,0.38442078048794365,0.44050362914206853,0.4268452667983942,0.46971599562979105,0.5923896663714803
25,0.5660046283670758,0.5347115017087086,0.5569323655979548,0.539593571267053,0.4927371530494282,0.4545079098802469,0.5807218434615257,0.5621263909356558,0.5607291296940149,0.5419899811402615,0.5368024685017342,0.5336902093266723,0.48130461762061777,0.43240310810102967,0.6022416205054992,0.481631342380874,0.4903949318351721,0.5285255571423468,0.5677706209113571,0.3135693967261365,0.37460175571477916,0.4426074446201065,0.4305884812503024,0.46490279460848066,0.5880099252031156
26,0.5591682958699987,0.5241643464323188,0.5584583423883117,0.5183820018063193,0.5008053530387162,0.46681008180781475,0.5814456914780058,0.580292931612064,0.5558655794572842,0.5585986748957649,0.5318061058062269,0.5385959229660309,0.49156225925562547,0.4216153911653119,0.6037406379559478,0.4825037990212436,0.49467075912024605,0.5150147778034962,0.5662821508370538,0.3639105750868965,0.3555204906325025,0.4339517502701791,0.45167283911856787,0.46591136745274236,0.5994794121434824
27,0.5655023970602826,0.5332728795672813,0.5576899833905942,0.5106039989254219,0.49438983665422154,0.45780497724486446,0.5754731388877168,0.5623551321988722,0.5630417512283485,0.5456539198526061,0.536760799698918,0.539890566565688,0.48442852659258057,0.42270598999124376,0.604570018074492,0.48601503334410634,0.4905827109904263,0.5251187693626849,0.5653791077411424,0.3638725115502469,0.3688851221997344,0.4410481480489096,0.43025039597829934,0.46595005101792963,0.5893662968217911
28,0.5702786155679145,0.5574396022161606,0.5683439709210929,0.5375007651676026,0.46902520602573256,0.45510081757358717,0.5915754613565976,0.578716843672491,0.5527744677062835,0.5793089762847586,0.5215299636669761,0.4802893302475414,0.46971004966838276,0.4734957464372264,0.6070559034832597,0.48744592979547263,0.5187313631743865,0.5105840706580381,0.5503975917568682,0.3879728380227932,0.3759623025534486,0.41804157946216924,0.42350220158373836,0.4766547684984362,0.591771623481986
29,0.5610515750450785,0.512418321323335,0.5929352493464201,0.639593571267053,0.48974632882875824,0.4486382315226308,0.5577998839799455,0.6276239607196432,0.6535328014718265,0.5374094314270018,0.5709690082841605,0.5095129587405073,0.43291056263468025,0.48156123101258996,0.6331567494531318,0.4955474366380663,0.49689950129383864,0.5853445608869101,0.5601629932320905,0.21356939672613648,0.43284133595574825,0.38442176841861425,0.42708671215640953,0.5136628691549598,0.5705746156422522
30,0.5610341672957752,0.511894191735694,0.5935846141727348,0.6399597240464586,0.4898162704055459,0.4485108448265326,0.5578348081312021,0.6278537730354387,0.6531829569024904,0.5375421124013889,0.5709588075982469,0.5086206715138109,0.43264262507505596,0.4819950296883863,0.6327221164279804,0.4955244164713644,0.49685856876404266,0.5848573299163523,0.5601026421633498,0.2135272881613005,0.43242858599441214,0.38426572194595937,0.427441941223358,0.5136695353294845,0.5704169893324412
31,0.556691196008201,0.5221783621889108,0.6182961821744333,0.6221180969255616,0.5143832740753408,0.4123875746281083,0.5743217517684235,0.6188366007056015,0.6229487557652928,0.529745316612361,0.5556194859742392,0.5249261995912503,0.433228878615708,0.4546065423637225,0.6272450121606364,0.44531419534737615,0.42050539670642384,0.5815735964326713,0.578903337389503,0.2688118438285152,0.4201004365175726,0.39809456578009433,0.4648950294792648,0.49298367726606757,0.6009972671203043
32,0.5278161619049578,0.5105938664108662,0.6299596517665775,0.6448721514438692,0.5492120253980346,0.3793676146713467,0.5788515349769351,0.630116141507734,0.6407079039573416,0.5281212038569246,0.5516838632830054,0.496910698395897,0.4033415941455066,0.43465687372635897,0.6488917511626542,0.42645163458482127,0.3888977163321609,0.5754996777499893,0.5959308300356019,0.2642891140987314,0.4654457259884496,0.3729290928534708,0.47829876696556717,0.4582599988160278,0.6055187868350755
33,0.5533534433238336,0.5155304890532854,0.6300079296238175,0.6059250449230268,0.4965378218202028,0.40086418149070224,0.5779688994624973,0.6229947507928808,0.6010968710018647,0.5211616972575563,0.552231651708153,0.5344699400004482,0.4626228324691839,0.4463140189392567,0.6184800749983468,0.4226226921805928,0.4114536377875192,0.5995535957456534,0.5615797525554048,0.272877006706191,0.4296303562040377,0.3983773337789818,0.4738988198639972,0.49438554812454544,0.631539849702095
34,0.5766967212790857,0.5286540377162001,0.6360586615765212,0.6381154290098232,0.5169313215807381,0.4177947381818075,0.5826943913321838,0.615229941854551,0.6194219922892005,0.5257488070344052,0.5597302617731321,0.5318544775092545,0.4036170709394822,0.4666520547133078,0.6224865547886701,0.42822096285611416,0.416104139793118,0.5619920308785961,0.5736428155864405,0.28879016377063693,0.3852380817461106,0.4284733693210077,0.4652288749838146,0.5262547727471916,0.5935216008898774
35,0.5170382139627432,0.5419631893231766,0.6516303428895511,0.6258451631508823,0.45817786518092096,0.408637104396915,0.540311706078002,0.5863180587068907,0.6265249696534992,0.5794435722100519,0.5445959595609331,0.5327985056979162,0.41300302482040846,0.46076447300357837,0.6415579036012977,0.4649684901452657,0.4600602164724369,0.563339938381084,0.5512276905730541,0.2532282594322292,0.3998741005393544,0.4138080191189134,0.4696121373366625,0.46471825202761236,0.6020806483939637
36,0.5718503798160169,0.5370863642503849,0.650010642986962,0.5721180969255616,0.4787383663485692,0.4623875746281083,0.613174558716794,0.5827789267053941,0.6174439034015615,0.5501652389778945,0.5371233618018167,0.5291832363422121,0.47612366475788886,0.4261708583969412,0.6147197526290823,0.3969551448085281,0.4426196924428091,0.5315735964326712,0.5289033373895029,0.3188118438285152,0.4025580424025148,0.4113160357069343,0.43755443831563184,0.49507988534840597,0.6099341958248965
37,0.5581507086723488,0.5221155105708944,0.6415614464355445,0.6337094259867551,0.47353830324367885,0.4011625899759011,0.5682624286881824,0.6232057178700098,0.6113424952814565,0.5281049920481019,0.5622628101793549,0.5200736971699753,0.4110805112996263,0.4717473357611594,0.6151842659816087,0.4293480943256511,0.4068761907647422,0.5356393333698686,0.5708817189606686,0.28371494943428005,0.38456787611326454,0.3959888758860166,0.4851928843256326,0.5110747300725906,0.6037653990146172
38,0.6354697580372548,0.561246937147948,0.582150298783179,0.5385214458236767,0.4622212965263061,0.4870899900338568,0.5829639497940478,0.5143694782596625,0.5014648650792283,0.6029067900873137,0.5265461764851456,0.5444399019699451,0.5290291658973514,0.43814902262064953,0.6546792838198233,0.4379037636500981,0.5123658226918855,0.4946873563869595,0.4333859994740177,0.4431035539896443,0.40923728281846394,0.40339254771004174,0.48557655019061735,0.49733031393656235,0.6320063075996873
39,0.5934990778034989,0.5317077138639887,0.5688874827357312,0.5207206596278282,0.4678727923900398,0.4210120857647783,0.5539381599842336,0.5337711739368338,0.5671350402026432,0.5708472932677563,0.4642795368543624,0.531742036061157,0.4846181330501469,0.4649823779639238,0.5630886536824965,0.40497321929013996,0.522213766238326,0.5167461425964253,0.4847912156683339,0.45106451133422704,0.4295471921914806,0.4431691212907707,0.43089614250620945,0.5051307144310925,0.5801191364529357
40,0.5196194513329435,0.5234261157788824,0.614033785927679,0.4655963212738459,0.4923280268084055,0.46827324446119656,0.49861887943977334,0.5253253292842648,0.543017075089763,0.5108336859372888,0.4934287625207843,0.5512444676187638,0.43932020818522743,0.4545339849457057,0.509727530104384,0.3184564770431722,0.42439536223711477,0.5199170374730765,0.48860406024456465,0.4409791322907372,0.3943091326705481,0.49208513929392644,0.4900911127090399,0.6051307144310925,0.5185796038985118
41,0.5728777856858903,0.5402999077575357,0.6361946184000504,0.5838193419887912,0.47353031593156797,0.4239432733170728,0.4829639497940477,0.5912018711191481,0.529458277389011,0.5029067900873138,0.5645036843061216,0.5713754810855015,0.42902916589735135,0.49980702730532767,0.5826788331129747,0.3379037636500981,0.4123658226918855,0.5946873563869595,0.5296650469035646,0.34310355398964426,0.4576276925628966,0.4748463171297894,0.519637880701635,0.5695894416549873,0.5739989412315943
42,0.589966124752501,0.5323761376754099,0.6149755702517843,0.5288154674577578,0.5096616037548038,0.4468393834882533,0.5328082138309734,0.5177407989046071,0.4991408702978861,0.5414001184524431,0.5074159839615803,0.5206255710165747,0.44775179535143494,0.46729077826003623,0.5103409345487435,0.3368773191516279,0.48343791523018265,0.5833354827060722,0.52452724691957,0.4278989024946786,0.44976530564165773,0.44603493141482065,0.4329828540001687,0.509541897219444,0.543284552949245
43,0.5607103010615451,0.5568082254341081,0.5697167210800177,0.5155963212738459,0.4912506550277938,0.41827324446119657,0.5056679273469087,0.5545015061355384,0.5287448526586017,0.49297561514982796,0.4996244447513126,0.5542831802476568,0.4541207529487797,0.49873267212132244,0.5073232576746638,0.3081592959949211,0.4446852586719647,0.5699170374730765,0.5352384576652194,0.4209101891455608,0.4443091326705481,0.5150143223685508,0.473704747206148,0.5593817299264111,0.5457879215739696
44,0.576885105680799,0.5329779268656591,0.6126183122914727,0.5251747861545337,0.4756287698008038,0.43320487768427063,0.43502089659025595,0.524515935807193,0.43554444905457157,0.4929960577065168,0.5227393279474958,0.5778778453643528,0.4503686667839098,0.47359332051727004,0.5198790330024614,0.2802372115196591,0.41660210887877414,0.611695102415292,0.5374607394961937,0.40323383087266823,0.4747529563014409,0.5205037994407055,0.5130829147629306,0.5983760765695028,0.5663651843624732
45,0.5758750389462433,0.5438984020852432,0.5981924704505982,0.5122831974977281,0.49789857500929063,0.4277582468543403,0.42952744539704973,0.5364236192256364,0.42304196034345537,0.4861617141423896,0.5375967048775415,0.5914799185349451,0.46775771301710745,0.48882602286086285,0.5377095798559254,0.2708736636311543,0.39635943311498845,0.6346332364668825,0.5262346217980438,0.41926348474155706,0.45534409666639153,0.5305257774403447,0.5359313445874658,0.6168377281911608,0.5595719556871073
46,0.5822266209388244,0.5363009145166994,0.5985234652132245,0.53843217620664,0.4961880949990589,0.4497313218515905,0.46426711729818815,0.528763278277882,0.44397250540099054,0.5009600361723999,0.5212602860106997,0.5965318448750122,0.48087646406251666,0.5046706517634691,0.5136191910859396,0.2524666951177948,0.41502394177099355,0.6015526208878502,0.5463321801864639,0.3938810330593756,0.47470949168958787,0.5285012043910285,0.5042431929638944,0.6211171781155839,0.5332188148811653
47,0.58724923461243,0.5654625838645734,0.6011824366059231,0.5313585629133014,0.4939237477647692,0.44512031325474255,0.44837034717469654,0.525799578635141,0.43698424550216736,0.48598729299873517,0.52203846042446,0.589620730180962,0.4688710957470025,0.49812711979086516,0.512839101823994,0.2762781792264929,0.4135184116863174,0.634488071915379,0.5499033138311289,0.4016525310998766,0.4713706420339242,0.5087584458558161,0.5000257765208007,0.6366266350997076,0.536432835867566
48,0.6084862000197732,0.5500949137538456,0.5804571348634536,0.5257841425057777,0.497087148345327,0.4311424640561181,0.4616441155130691,0.49243750862612923,0.44250261387313206,0.46319275376935687,0.5128311631955417,0.581744215051714,0.5000373149645514,0.48216474623565414,0.4893250373954788,0.27645152897780473,0.43540175189185365,0.6426419447439035,0.5583490836865971,0.4324770043480218,0.5172814991528046,0.513660322108125,0.4997652176147125,0.5700862236243334,0.5567818374503063
49,0.6090398859985737,0.5628860119094047,0.5861709761539906,0.5197824324473183,0.5165191075990703,0.43060755758886854,0.47076400260251444,0.5119889098142765,0.4409810914024225,0.4665256350262861,0.5218970341980282,0.5678633326292879,0.4954513811238659,0.45549903533164837,0.47413522343001124,0.2796855814439369,0.4453725210306451,0.6328573621140383,0.5528297502260736,0.4033650082524405,0.5131661825886994,0.5128290442177733,0.49090868443173435,0.5565448042322905,0.5651462452701492
50,0.6206621028453606,0.5557989012955904,0.5925663537826094,0.5213481756503435,0.5156413848144441,0.4303100318646545,0.4734418362493142,0.4969963583916076,0.4309145914070303,0.46049671466667497,0.5154957198369624,0.5700290577453851,0.5031833090205217,0.4624026760472543,0.47655110465889766,0.28527564457089416,0.44445455236338993,0.6419437387610956,0.5609944228118532,0.4095129969506346,0.5175620386114336,0.5146413251531615,0.48024463469597695,0.5424052491835604,0.5646779472971728
51,0.6184296456982256,0.558442016613124,0.5778892592936364,0.5167185801616956,0.5233880362309877,0.4085040274208699,0.48783974515091294,0.507255273397543,0.44883598328931973,0.47006722655460514,0.5176096740567601,0.5553014398619828,0.5117230173111348,0.47191175702820537,0.45911581666318474,0.3085834890336814,0.4523552840696149,0.6430928253136717,0.5735759582612666,0.4195123088078643,0.5214261718140811,0.5011021148605941,0.4776817385088172,0.5275386905385575,0.5474593368175578
52,0.5978303067505779,0.5397627805244655,0.5545695555636779,0.5236080072819789,0.5118254036659448,0.3890889839815183,0.5040243110269299,0.5300745751615722,0.4604742825091897,0.4835653804852588,0.5080438275031252,0.5358832174159482,0.5006111086097955,0.5060754458561983,0.4521761358394491,0.30703264932176016,0.46097611074231537,0.6274956598190506,0.5958004752166525,0.43192836585209265,0.5284345682120064,0.5193043182745739,0.4573157572569548,0.5351966910877439,0.5330241086473602
53,0.5922439378257448,0.5574663398814111,0.531751440054978,0.5249393861633121,0.5087153129631007,0.3838725452640808,0.5070805447814065,0.5284027135581181,0.474557275209218,0.4933919805636016,0.5062502257422021,0.539959789796274,0.4848990546238353,0.5017246643570275,0.4367543629420328,0.30112345149614456,0.43837129582949796,0.6233126388967509,0.5724708381901883,0.43031497825136833,0.5131686908684,0.51557174384608,0.4710735613355685,0.5214333172208739,0.5210159012905207

Clearly, ParMOO has not found the exact solutions, but many of the solutions are quite close in all but a few columns of x26, …, x50. Whether these solutions would be accurate enough for a given application is entirely application dependent.
